mini 20W 25W Non-Flicker 0-10V Dimming LED Driver Power Supply
Product Introduction
| Features: |
| 1-classive two polar electronic design, high quality |
| 2-Small size, isolated LED Driver |
| 3-Gel injected type, withstand high temperature & high humidity. |
| 4-flicker-free by shooting,0/1-10V dimming |
| 5-TUV/CE Certificated, Meet the ENEC/UL/SAA |
| Mechanical Specification |
| 1. Casing material : PC,94V-0,125°C |

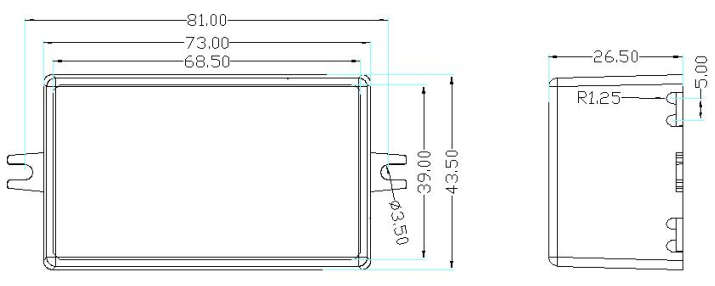

| 2. Dimension: |
| L*W*H : 73*43.5*26.5mm (No fixed holes) |
| L*W*H : 89*43.5*26.5mm (With fixed holes ) (P.S: No fixed holes is normal type for order, if needed fixed holes, please tell us when you place the order.) |
| Application: |
| Commercial light: Spot light, track light, down light |
| Mini lamps used in museums, hotels, villas,etc lighting projects. |
Specification
Installation Type: Built-in type.
Dimming Type: 0-10V/1-10V Dimming or Non-Dimming.
please inform us your dimming type when inquiry, thank you.
| Mode | O.P | I.V (Vac) | O.V (Vdc) | O.C (mA) | PF | Ef. | Current Accuracy | Ta | Tc | Remarks |
| (W) | ||||||||||
| RMS-30-700AS | 21 | 100-277 | 8-42 | 500 | >0.9 | 85% | <5% | 60°C | 90°C | TUV/CE |
| 23.1 | 550 | >0.9 | 86% | <5% | ||||||
| 25.2 | 600 | >0.9 | 86% | <5% | ||||||
| 25.2 | 650 | >0.9 | 87% | <5% | ||||||
| 25.2 | 8-38 | 700 | >0.9 | 87% | <5% |
