Triac Dimmable LED Driver 15W RMS-12W300TR
Product Introduction
Product Character Description
* 15W isolation AC-DC led driver
* Small size, gel-injected,
* IP62 Full protective plastic case;
* Bipolar circuit frame, really flicker-free during dimming;
* Built-in active PFC function, low THD ;
*
No-load, over-voltage, over-temperature protection;
* Five years warranty(50000hours)
* Comply with TUV/CE/SAA/CCC/SELV(ultra low voltage standard)
* Put into LED lamp body, can withstand-20~60℃;
* Suitable for back-edge phase-cutting (Mosfet) dimmer and front-edge phase- cutting Traic SCR dimmer (see below for details); and
* Two cases for easy mounting, outside or built-in (no fixing holes)
Mechanical specification
* CLASS Ⅱ;

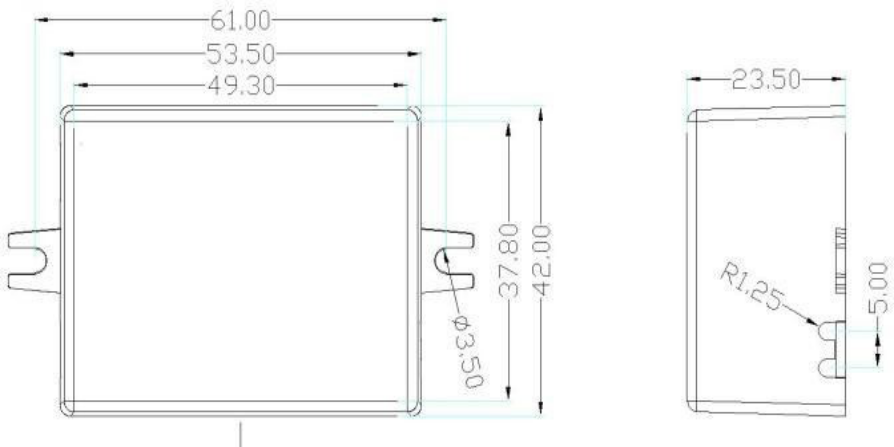

* Installation size: L*W*H：53.5*42*23.5mm( no fixed hole);
Casting material: PC, 94V-0, 125℃.
Specification
Model | RMS-12W300TR | |||||
Input | Input voltage | Rated input voltage: Vac 180-264 | ||||
Frequency | 50/60 HZ;47-63Hz | |||||
Output | Voltage | 16-24 V | 30-40V | 30-40V | 30-40V | 31-38V |
Current | 450mA | 150mA | 200mA | 330mA | 350mA | |
Output power | 13.2 W | |||||
Current accuracy | ＜5% | |||||
Efficiency | 77%(230V input, full load) | |||||
Power factor | >0.90(230V); | |||||
Startup time | 132 ms (230V); | |||||
Safety | Safety Directive | UL8750,EN61347-1,EN61347-2-13,EN62384 | ||||
Insulation impedance | I/P——O/P 100MΩ/500VDC/25℃/70%RH | |||||
Insulation | 3750Vac | |||||
Leakage current | <0.5 mA,CLASS II (264 Vac and max load) | |||||
State power consumption | Standby power <0.6 W | |||||
EMC | Electromagnetic interference | EMI：EN55015, | ||||
Electromagnetic immunity | ESD：EN61000-4-2 8KV CRITERIA B;EFT：EN61000-4-4 1KV CRITERIA B; Surge：EN61000-4-5 1.5 KV CRITERIA B;THD：EN61000-3-2 <15%； | |||||
Others | MTBF | Type AS is 50000 hours with rated input voltage and Tc ; ON/OFF life ＞5000times (rated full load) | ||||
Environment | Working temp. &humidity：-25℃--60℃，10-90%RH No-condensing； Storage temp. &humidity：-35℃--75℃，10-90%RH No-condensing； | |||||
Temperature | Tc 85℃ | |||||
Weight | about 85g/pcs | |||||
Application | LED down lights, LED panel lights or LED track lamps | |||||
LED serial connection | （10-12）* LED | |||||
