16W 18W 20W 25W 0-10V Dimming Flicker Free LED Driver Power Supply
Product Introduction
| Features: |
| 1-classive two polar electronic design, high quality |
| 2-Small size, isolated LED Driver |
| 3-Gel injected type, withstand high temperature & high humidity. |
| 4-flicker-free by shooting,0/1-10V dimming |
| Mechanical Specification |
| 1. Casing material : PC,94V-0,125°C |

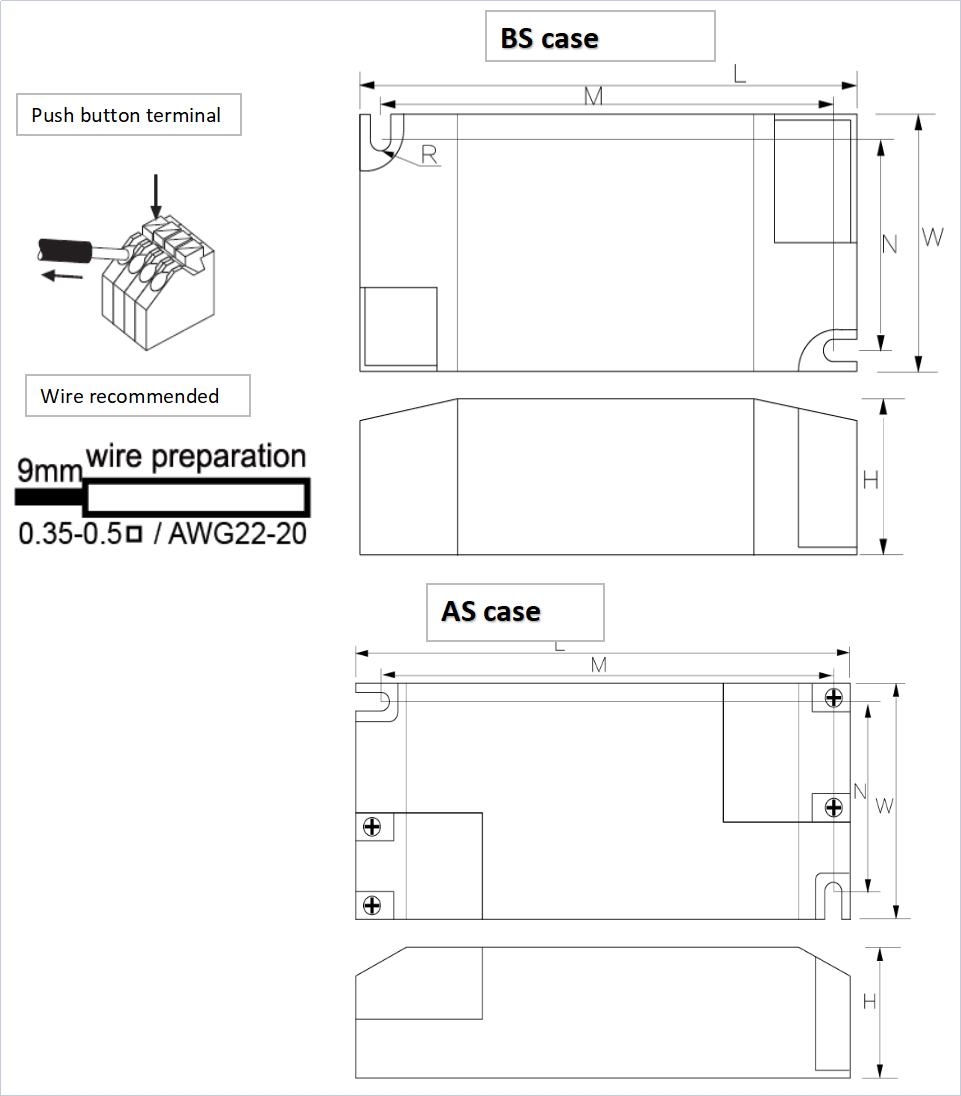

| 2. Dimension: |
| BS case：L*W*H：96.2*47*29mm M*N*R：87.5*38.3*2mm AS case：L*W*H：116*50.5*29mm M*N*R：106*40.5*2mm |
| Application: |
| Commercial light: Spot light, track light, down light |
| Mini lamps used in museums, hotels, villas,etc lighting projects. |
Specification
Installation Type: Built-in type.
Dimming Type: 0-10V/1-10V Dimming or Non-Dimming.
please inform us your dimming type when inquiry, thank you.
| Mode | O.P | I.V (Vac) | O.V (Vdc) | O.C (mA) | PF | Ef. | Current Accuracy | Ta | Tc |
| (W) | |||||||||
| RMD-24-600AS/BS | 16.8 | 120-277 | 8-42 | 400 | >0.9 | 85% | <5% | 45°C | 85°C |
| 18.9 | 450 | >0.9 | 85% | <5% | |||||
| 21 | 500 | >0.9 | 86% | <5% | |||||
| 23.1 | 550 | >0.9 | 86% | <5% | |||||
| 25.2 | 600 | >0.9 | 86% | <5% | |||||
| 25.2 | 650 | >0.9 | 86% | <5% |
