6W 8W 10W 12W 0-10V Dimming LED Driver Non Flicker Power Supply
Product Introduction
| Features: |
| 1-classive two polar electronic design, high quality |
| 2-Small size, isolated LED Driver |
| 3-Gel injected type, withstand high temperature & high humidity. |
| 4-flicker-free by shooting,0/1-10V dimming |
| Mechanical Specification |
| 1. Casing material : PC,94V-0,125°C |

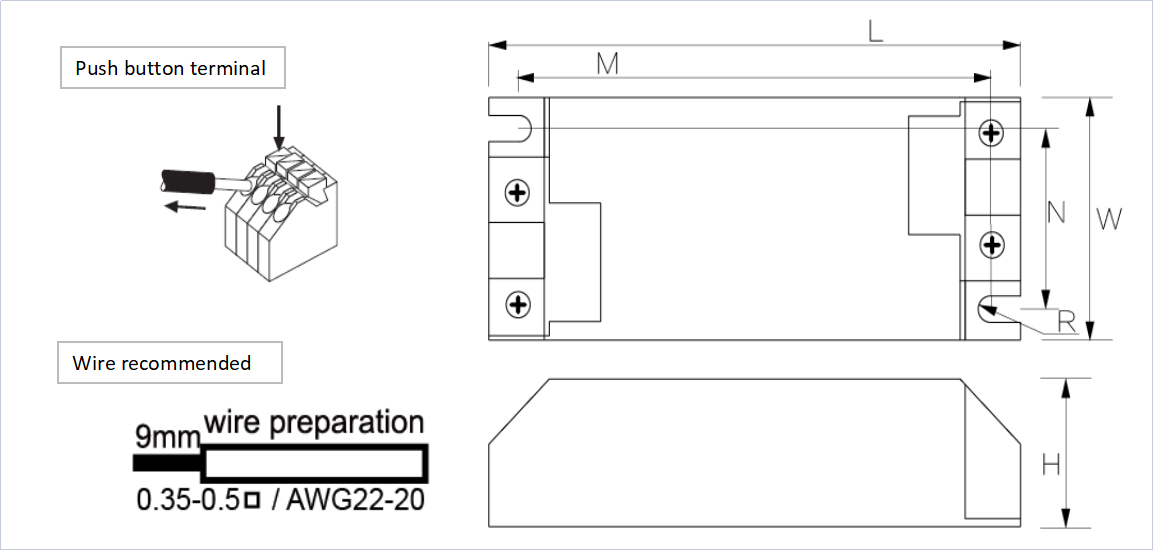

| 2. Dimension: |
| L*W*H : 88*38*23mm M*N*R: 78.2*28.2*2.1mm |
| Application: |
| Commercial light: Spot light, track light, down light |
| Mini lamps used in museums, hotels, villas,etc lighting projects. |
Specification
Installation Type: Built-in type.
Dimming Type: 0-10V/1-10V Dimming or Non-Dimming.
please inform us your dimming type when inquiry, thank you.
| Mode | O.P | I.V (Vac) | O.V (Vdc) | O.C (mA) | PF | Ef. | Current Accuracy | Ta | Tc |
| (W) | |||||||||
| RMD-12-300AS | 6.3 | 120-277 | 8-42 | 150 | >0.9 | 80% | <5% | 45°C | 85°C |
| 8.4 | 200 | >0.9 | 81% | <5% | |||||
| 10.5 | 250 | >0.9 | 82% | <5% | |||||
| 12.6 | 300 | >0.9 | 82% | <5% | |||||
| 12.6 | 8-38 | 350 | >0.9 | 83% | <5% |
