Triac Dimmable LED Driver 30W RMS-12W300TR
Product Introduction
Product Character Description
* 30W isolation AC-DC led driver
* Small size, gel-injected,
* IP62 Full protective plastic case;
* Bipolar circuit frame, really flicker-free during dimming;
* Built-in active PFC function, low THD ;
*
No-load, over-voltage, over-temperature protection;
* Five years warranty(50000hours)
* Comply with TUV/CE/SAA/CCC/SELV(ultra low voltage standard)
* Put into LED lamp body, can withstand-20~60℃;
* Suitable for back-edge phase-cutting (Mosfet) dimmer and front-edge phase- cutting Traic SCR dimmer (see below for details); and
Two cases for easy mounting, outside or built-in (no fixing holes)

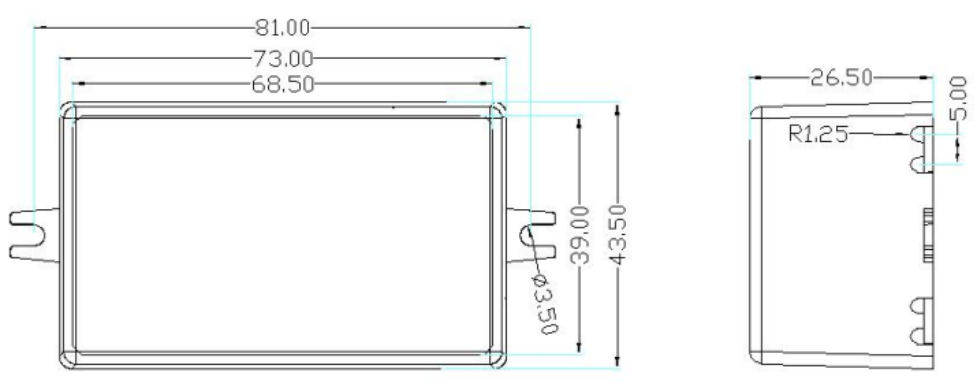

Mechanical specification
* CLASS Ⅱ;
* Installation size: L*W*H：73.5*43.5*26.5mm( no fixed hole);
Casting material: PC, 94V-0, 125℃.
Specification
Model | RMS-26W650TR | ||
Input | Input voltage | Rated input voltage: Vac 180-264 | |
Frequency | 50/60 HZ;47-63Hz | ||
Output | Voltage | 27-40V | 24-36V |
Current | 400mA/450mA/500mA/550mA/600mA/650mA | 700mA | |
Output power | 26W(max) | ||
Current accuracy | ＜5% | ||
Efficiency | 82%(230V input, full load) | ||
Power factor | >0.90(@230V); | ||
Startup time | 138ms (230V); | ||
Safety | Safety Directive | UL8750,EN61347-1,EN61347-2-13,EN62384 | |
Insulation impedance | I/P——O/P：DC500V 10MΩ | ||
Insulation | I/P——O/P：3750Vac 50Hz 1minute ≤10mA； | ||
Leakage current | ＜0.75mA，CLASS II（264Vac and max load） | ||
State power consumption | Standby power ＜0.8W | ||
EMC | Electromagnetic interference | EMI：EN55015, CLASS B | |
Electromagnetic immunity | ESD：EN61000-4-2 8KV CRITERIA B；EFT：EN61000-4-4 1KV CRITERIA B; Surge：EN61000-4-5 1.5KV CRITERIA B；THD：EN61000-3-2 <15% | ||
Others | MTBF | Type AS is 50000 hours with rated input voltage & Tc ; ON/OFF life ＞5000times (rated full load) | |
Environment | Working temp. & humidity：-25℃--60℃，10-90%RH No-condensing； Storage temp. & humidity：-35℃--75℃，10-90%RH No-condensing； | ||
Temperature | Tc 85℃ | ||
Weight | about 115g/pc | ||
Application | LED down lights, LED panel lights or LED track lamps | ||
LED serial connection | （9-12）* LED | ||
